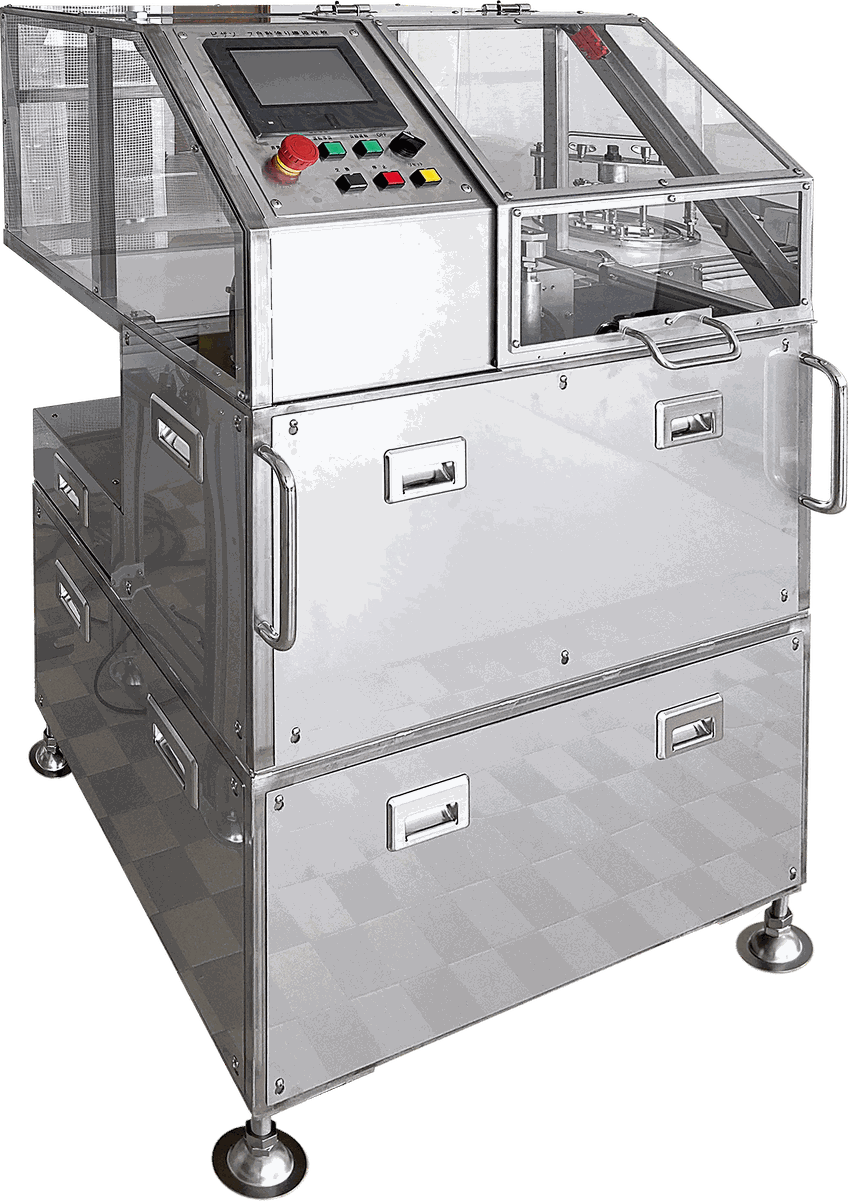

Automatic Coating Machine For Pizza Sauce

Automates the sauce-dispensing process of the production line,
thus reducing labor and stabilizing quality.

FEATURE

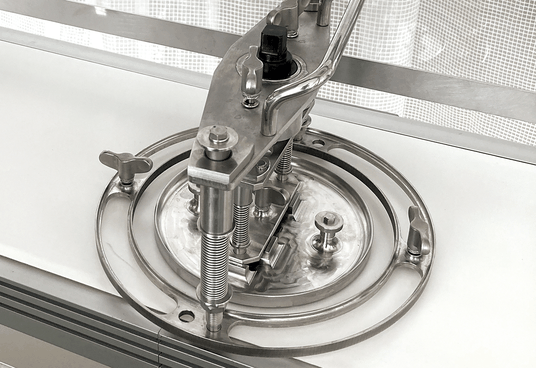

One machine, multiple solutions

Just replace our machine, add the sauce and start!
Perfect finish in different cases, such as high viscosity sauces.
Reduce production risks and human error.

Exceeding skilled workers

Process up to 1,200 sheets / hour with single type “speed” “optimal” in continuous processing stably.

Compact design / only one operator space

Adaptable with flexible production line
Designed “clean” “easy maintenance” for the mass production.

Product Specifications

Specification	Single	Double
Electric source	AC 100V
Capacity *1	20 sheets / min	40 sheets / min

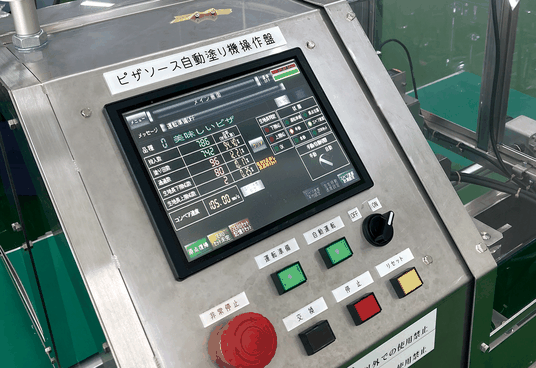

Operation *2	Touch panel type
Dimensions *3	Width : 830mm Depth : 700mm Hight : 1,400mm	Width : 1,050mm Depth : 600mm Hight : 1,400mm
Options	Positioning device Automatically sauce supplier NG judgement device Belt conveyor

*1 Processing speed varies depending on dough thickness, surface profile, and type of sauce
*2 Cannot be operated when cover is released
*3 Operation indicator lights are included

Sausage / salami Cutting & Suppling device	Status : under development scheduled for summer 2024
